• Light weight drilling rig from aluminium.

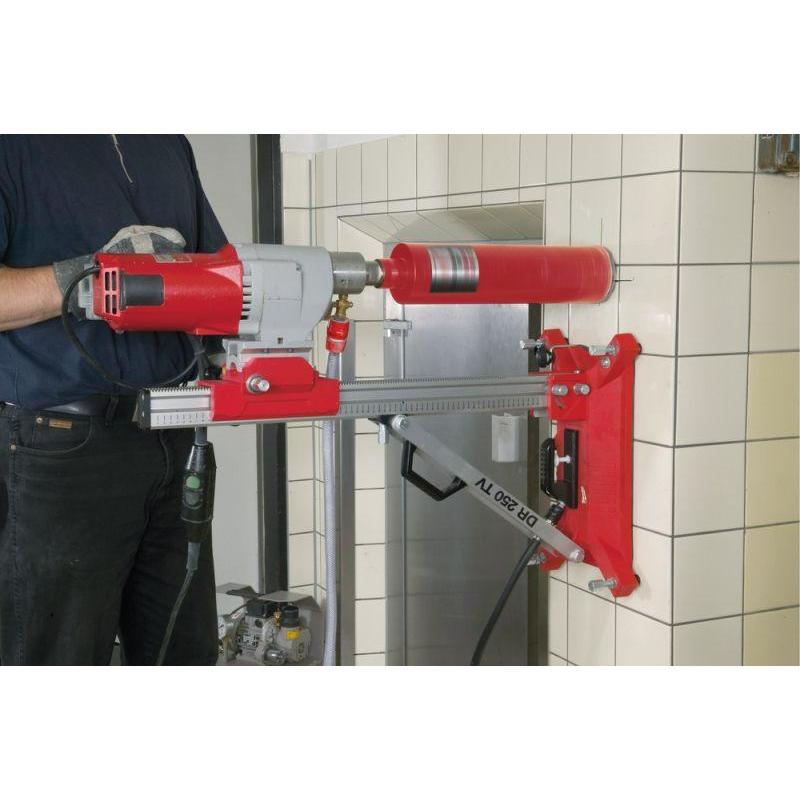

• Tilting (0 - 45°).
• Drill angle and depth display.
• Quick-connect motor plate.
• Fine adjustment of feed speed.
• Vertical and horizontal water level.
• Drill hole centering device.
• Leveling screws.
• Feed handle attachable to both sides of rig.
• Integrated vacuum base plate (use with and without vacuum possible).
Supplied with ˝ Hex key, 6 mm Hex key, 17 x 19 wrench, quick-connect motor plate, 4 pcs. M8 x 25 mm screws, centering device, vacuum rubber seal
Size: 834 x 276 x 467 mm
Max. drilling core bit: 250 mm
• Two-speed diamond coring motor.
• Internal slip clutch.
• Triple-reduction gearing.
• Soft start switch.
• Motor overload protection.
• PRCD residual current device.
• Built-in water swivel.
• Dual-mount switch box.
• Supplied with open end wrench, Hex keys and strap with switch box.
Zapytaj o produkt

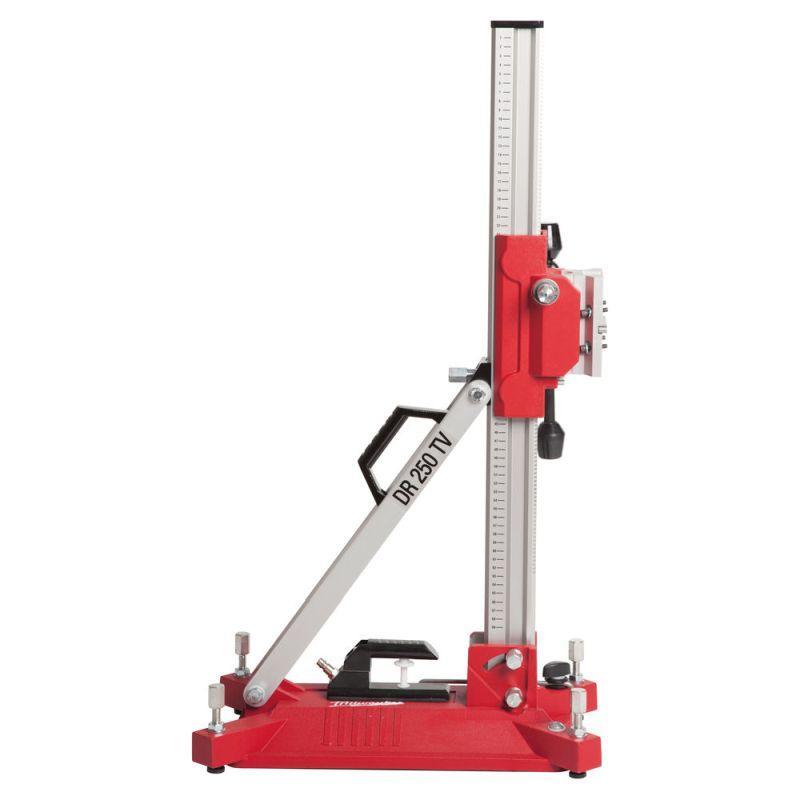

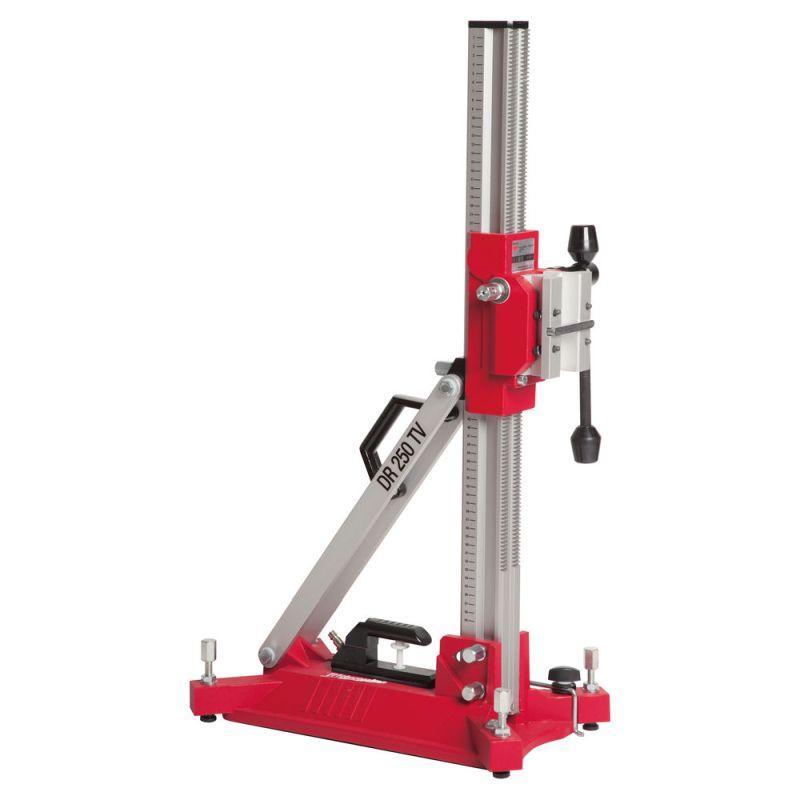

DR 250 TV - Diamond drill stand for DCM 2-250 C
