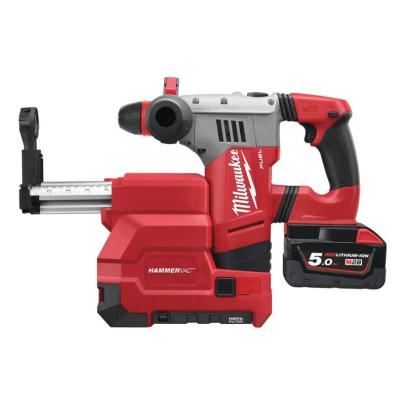

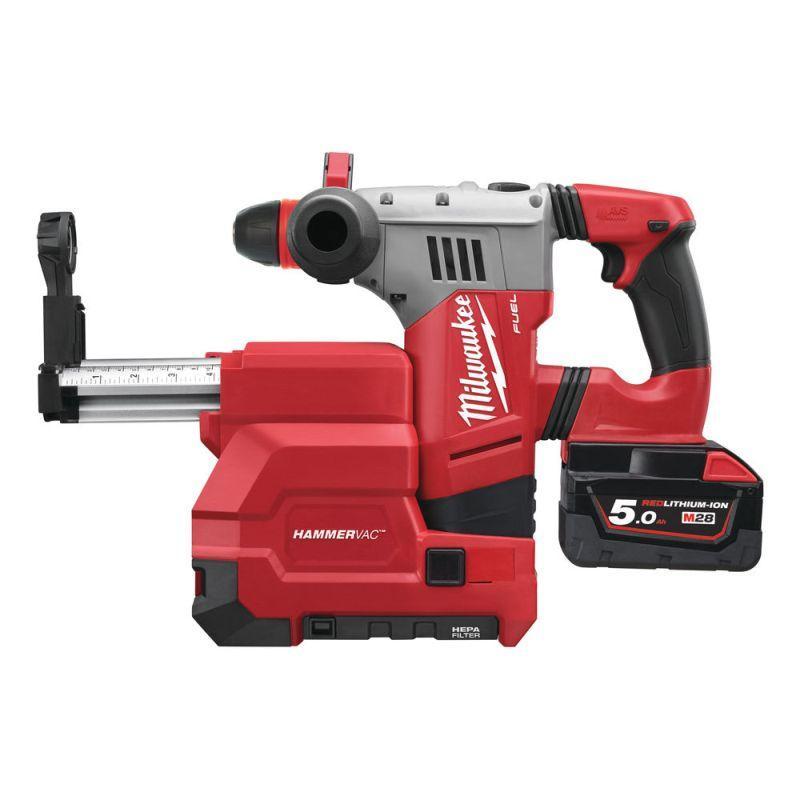

M28 CHPX: TECHNICAL DATA: • No load speed: 0-1350 rpm • Max. percussion rate: 0-5000 bpm • Blow energy: 4.1 J • Tool holder: SDS-Plus • Max. drilling wood/ steel/ concrete: 30/13/28 mm • Optimised drilling capacity in concrete: ø 7 - 24 mm • Vibration chiseling and drilling: 8.1 m/s² • Sound power level: 103.7 dB(A) • Sound pressure level: 92.7 dB(A) • Weight with battery pack: 4.7 kg
DESCRIPTION: • Brushless POWERSTATE™ motor. • REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load. • REDLITHIUM™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life. • High powered motor gives corded tool performance. • Hardest hitting cordless SDS hammer in its class. Powerful hammer mechanism: delivers 4.1 J of impact energy at low 8.1 m/s² vibrations thanks to the new dual rail anti-vibration system. • All metal gear case - optimum seating of the gears for enhanced service life. • 4-mode operation: rotary hammer, hammer only, rotation only and variolock for maximum versatility. • FIXTEC™ system - keyless chuck changing. • Individual battery cell monitoring optimises tool run time and ensures long term pack durability. • Fuel gauge displays remaining battery charge. • Compatible with M18-28 CPDEX dust extractor.
M18-28 CPDEX: TECHNICAL DATA: • Max. drill bit diameter: 16 mm • Max. drilling depth: 90 mm • Max. drill bit length: 160 mm • Stroke length: 100 mm • Weight with battery pack: 1.6 kg
DESCRIPTION: • Designed to collect dust effectively with automatic operation from the tools on/off trigger switch. • HEPA filter: widely regarded as the ultimate filter that traps all sizes of particles with an efficiency rating of 99.75%. • Large dust collection box. • Dust extraction aluminium tube is adjustable according to the size of the drill bit and length 16 mm max and 90 mm depth. • Compatible with M18 CHPX & M28 CHPX.
• Voltage: 28 V • System: M28 • Up to 65% more run-time, up to 20% more life • Overload protection • Battery fuel gauge • Durable metal frame battery construction • Battery type: Li-ion • No. of batteries supplied: 1 • Battery pack capacity: 5.0 Ah • Weight: 1.026 kg
• Hardest hitting cordless SDS hammer in its class. Powerful hammer mechanism: delivers 4.1J of impact energy at low 8.1m/s² vibrations thanks to the new dual rail anti-vibration system*.
• 4-mode operation: rotary hammer, hammer only, rotation only and variolock for maximum versatility.
• FIXTEC system - keyless chuck changing.
• Milwaukee® designed and built brushless POWERSTATE™ motor.
• Hardest hitting cordless SDS hammer in its class. Powerful hammer mechanism: delivers 4.1J of impact energy at low 8.1m/s² vibrations thanks to the new dual rail anti-vibration system*.
• 4-mode operation: rotary hammer, hammer only, rotation only and variolock for maximum versatility.
• FIXTEC system - keyless chuck changing.
• Milwaukee® designed and built brushless POWERSTATE™ motor.
