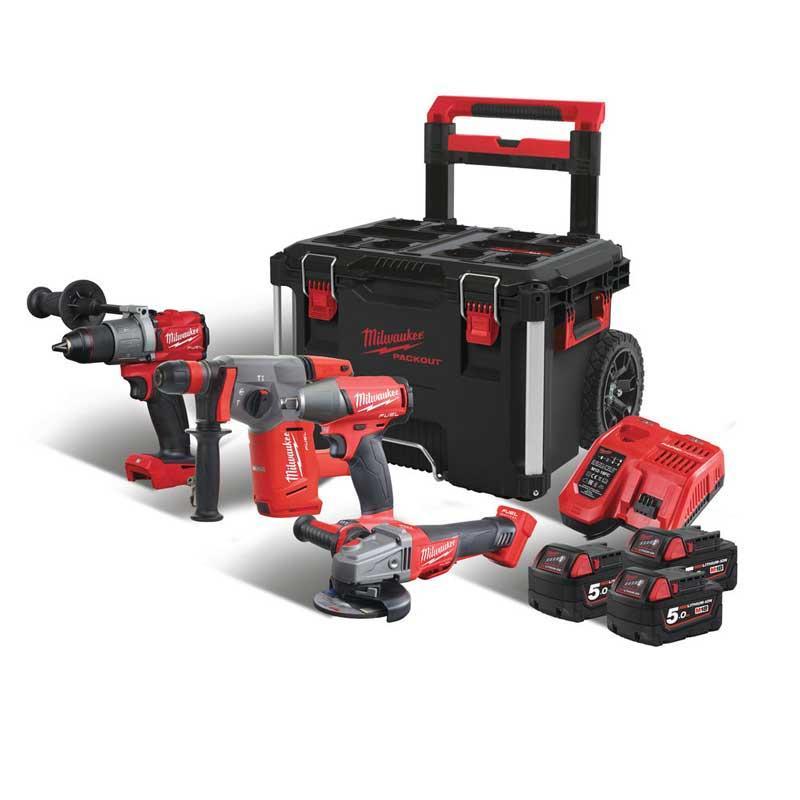

M18 FPP4A-503P - POWERPACK M18™ FUEL™, M18 FPD2, M18 FIWF12, M18 CAG125XPDB, M18 CHX, 3 x 5.0 Ah + charger, in box, 4933471148

M18 FPD2
• Voltage: 18 V
• Max. drilling masonry/steel/wood: 16/16/89 mm
• Max. percussion rate: 0 - 32000 bpm
• No load speed gear 1/2: 0-550/0-2000 rpm
• Max. torque: 135 Nm
• Speed settings: 2
• Chuck capacity: 13 mm
• Weight with battery pack: 2.2 kg

• Higher power efficiency under load - outstanding torque of 135 Nm.
• Extremely compact design of 175 mm length for access into tight spaces.
• Advanced heavy duty chuck providing increased bit grip.
• Brushless POWERSTATE™ motor for heavy application under load.
• 13 mm metal chuck for quick bit changes and bit retention.
• REDLITHIUM™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life.
• Individual battery cell monitoring optimises tool run time and ensures long term pack durability.
• Battery fuel gauge displays remaining charge.
• 40 percent brighter LED workspace illumination - vs previous model.
• All metal reversible belt clip to hang your tool quickly and easily.
• Flexible battery system: works with all MILWAUKEE® M18™ batteries.

M18 FIWF12
• Voltage: 18 V
• Max. torque: 40/120/300/120 Nm
• Impact rate: 2400/2600/3100/2600 ipm
• No load speed: 1700/2000/2500/2000 rpm
• Tool holder: 1/2" square
• Battery type: Li-ion
• Weight with battery pack: 1.8 kg

• Sound power level measured: 104.5 dB(A)
• Sound pressure level: 93.5 dB(A)
• Brushless POWERSTATE™ motor for longer motor life and up to 20% more power.
• REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load.
• 4-Mode DRIVE CONTROL allows the user to shift into four different speed and torque settings to maximise application versatility.
• Mode 1 for precision work.
• Mode 2 helps prevent damage to fasteners and material.
• Mode 3 delivers maximum performance for the toughest applications.
• Mode 4 intelligently detects when the tool has impacted on a fastener for one second automatically shutting the tool down, reducing overdriving and damaging materials.
• 1/2" friction ring reception.
• REDLITHIUM™-ION battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life.
• Individual battery cell monitoring optimises tool run time and ensures long term pack durability.
• On board fuel gauge and LED light.
• All metal reversible belt clip – quickly and easily hang tool.
• Flexible battery system: works with all MILWAUKEE® M18™ batteries.

M18 CAG125XPDB
• Voltage: 18 V
• Disc diameter: 125 mm
• Max. cutting depth: 33 mm
• No load speed: 8500 rpm
• Braking time: < 2s
• Spindle size: M14
• Paddle switch
• Brake: yes
• FIXTEC: yes
• Line lock out function: yes
• Anti-kickback protection: yes
• Battery type: Li-ion
• Weight with battery pack: 2.7 kg

• Vibration sanding: 2.15 m/s²
• Vibration at grinding metal: 4.61 m/s²
• Sound power level measured: 89.9 dB(A)
• Sound pressure level: 78.9 dB(A)
• Brushless POWERSTATE™ motor with the power to grind and up to 10x more tool life.
• REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load.
• REDLITHIUM™-ION battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life.
• RAPIDSTOP™ for fastest disc brake in less than 2 seconds and best user protection.
• Safety paddle switch with line-lock-out function to prevent automatic start up.
• Premium gearing system - same system as used at high performance corded grinders.
• Slim handle design with paddle switch.
• Removable dust screen to prevent debris entrance, prolonging motor life.
• 125 mm keyless guard - great cutting capacity and fast guard adjustment without using a spanner.
• FIXTEC™ nut for tool-free disc change.
• Anti-vibration side handle for lower vibration.
• Individual battery cell monitoring optimises tool run time and ensures long term pack durability.
• Fuel gauge displays remaining charge.
• Flexible battery system: works with all MILWAUKEE® M18™ batteries.
• Standard equipment: quick release safety guard, AVS side handle, flange, FIXTEC nut, 2x dust screens.

M18 CHX
• Voltage: 18 V
• Max. drilling wood/steel/concrete: 30/13/26 mm
• Max. percussion rate: 0 - 5100 bpm
• No load speed: 0 - 1400 rpm
• Optimised drilling capacity in concrete: 6 - 20 mm
• Vibration chiseling: 9.5 m/s²
• Vibration chiselling uncertainty: 1.5 m/s²
• Vibration drilling: 8.9 m/s²
• Battery type: Li-ion
• Weight with battery pack: 3.5 kg

• Brushless POWERSTATE™ motor for up to 2x longer motor life and up to 25% more power.
• REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load.
• REDLITHIUM™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life.
• Second hardest hitting SDS hammer in its class. Powerful hammer mechanism delivers 2.5 J of impact energy at low 8.9 m/s² vibrations.
• Compact, ergonomic design for increased end user comfort.
• All metal gear case - optimum seating of the gears for enhanced service life.
• 4-mode operation: rotary hammer, hammer only, rotation only and selectable work position of the chisel (variolock) for maximum versatility.
• FIXTEC™ system - keyless chuck changing.
• Individual battery cell monitoring optimises tool run time and ensures long term pack durability.
• Fuel gauge displays remaining charge.
• Compatible with M18 CDEX dust extractor.
• Flexible battery system: works with all MILWAUKEE® M18™ batteries.

• Supplied in Packout with 3 batteries and charger.
