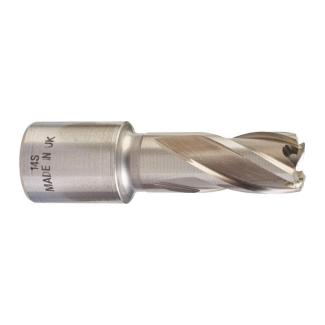

• Diameter: 14 mm
• Total length: 30 mm
• Pack quantity: 1
• Contents:
- 6 x HSS annular cutters: Ø 14 / 16 / 18 / 20 / 22 / 24 mm - 19 mm Weldon reception.
- 1 x ejector pin short series - 30 mm.
• 100% Faster- Speed and time savings are achieved due to the following factors.
- Firstly the annular cutter principle of only - cutting material from the periphery of the hole as opposed to the twist drill which must cut the complete diameter of the hole.
- Secondly the benefit of two aggressive sharp angles per cutting edge help to achieve faster feed rates and lower cutt-ing resistance.
• 30% More productivity - Because the annular cutter is only cutting material from the periphery of the hole.
• Less motor energy and driving power is required. The larger the drill diameter the greater the energy saving.
• Longer life time - The annular cutters cutting edges do less work than the twist drill resulting in more holes between sharpening.
• Thick 6 mm body together with special tooth geo-metry ensures high stability and reduces to a minimum the risk of breakage due to overloading.
• Thick walled HSS annular cutters for increased durability and life time.
• With standard 19 mm Weldon reception.
• 30 / 50 mm depth of cut.
• Diameter: 14 mm
• Total length: 30 mm
• Pack quantity: 1
• Diameter: 16 mm
• Total length: 30 mm
• Pack quantity: 1
• Diameter: 18 mm
• Total length: 30 mm
• Pack quantity: 1
• Diameter: 20 mm
• Total length: 30 mm
• Pack quantity: 1

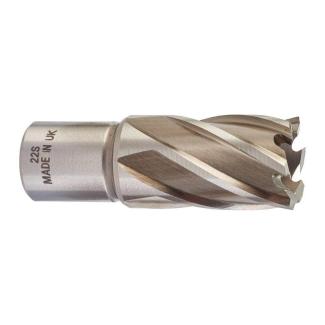

• Diameter: 22 mm
• Total length: 30 mm
• Pack quantity: 1

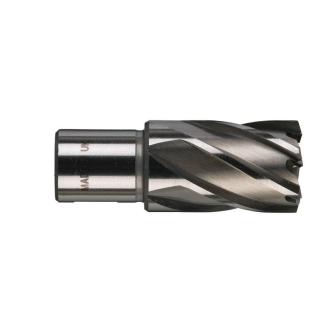

• Diameter: 24 mm
• Total length: 30 mm
• Pack quantity: 1
Zapytaj o produkt

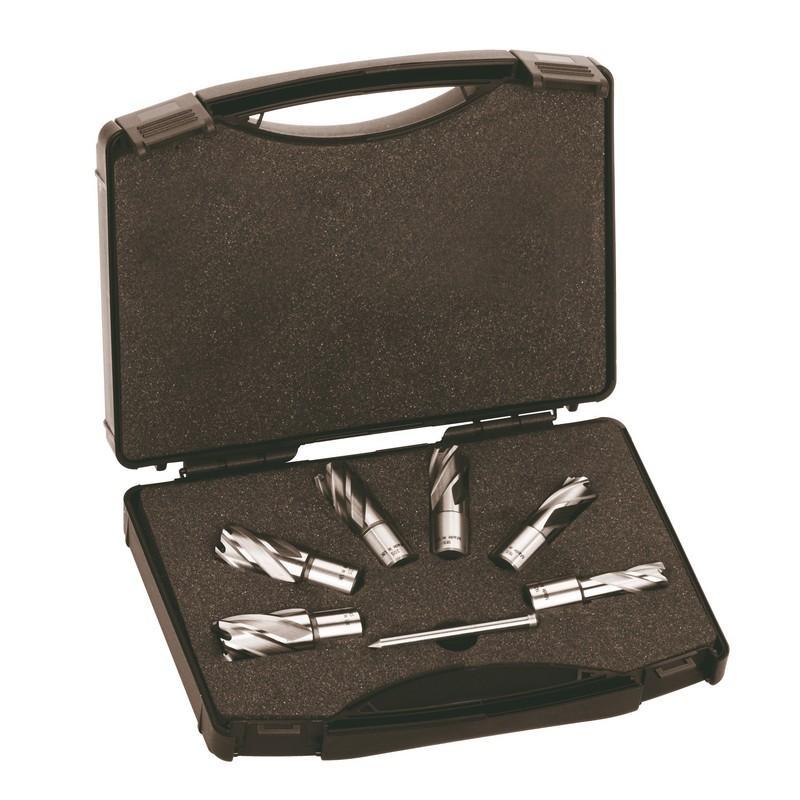

4932372533 - HSS annular cutter set, 14 - 24 mm (6 pcs.)
