M18 CBLDD
• Voltage: 18 V
• Max. torque: 60 Nm
• No load speed gear 1/2: 0-500/0-1800 rpm
• Max. drilling wood/steel: 52/13 mm
• Speed settings: 2
• Chuck capacity: 13 mm
• Battery type: Li-ion
• Weight with battery pack (M18 B5): 1.8 kg
• Compact brushless drill driver measuring 165 mm in length for access into tight spaces.
• Advanced 13 mm heavy duty metal chuck for quick bit changes and superior bit retention.
• 60 Nm of torque - best power to size ratio.
• REDLINK™ overload protection electronics in tool and battery pack deliver best in class system durability.
• REDLITHIUM™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life.
• All metal reversible belt clip to hang your tool quickly and easily.
• On board fuel gauge and LED light.
• Flexible battery system: works with all MILWAUKEE® M18™ batteries.
M18 CBLID
• Voltage: 18 V
• Impact rate: 0-4200 ipm
• No load speed: 0-3400 rpm
• Max. torque: 180 Nm
• Max. fastening torque: 180 Nm
• Max. bolt diameter: M14
• Sound power level measured: 105.43 dB(A)
• Sound pressure level: 94.43 dB(A)
• Battery type: Li-ion
• Weight with battery pack: 1.7 kg
• Compact impact driver measures only 130 mm in length making it ideal for working within confined spaces.
• Brushless motor technology delivers 180 Nm of torque, 3400 rpm and 4200 ipm.
• Heavy duty full metal gearbox and gears for superior durability and maximum torque.
• REDLINK™ overload protection electronics in tool and battery pack deliver best in class system durability.
• REDLITHIUM™-ION battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life.
• On board fuel gauge and LED light.
• All metal reversible belt clip to hang your tool quickly and easily.
• Flexible battery system: works with all MILWAUKEE® M18™ batteries.
• Standard equipment: belt clip.
M18 CCS55
• Voltage: 18 V
• No load speed: 5000 rpm
• Blade diameter: 165 mm
• Bore size: 15.87 mm
• Max.cutting depth 90°: 55 mm
• Max. cutting depth 45°: 41 mm
• Sound power level: 91.8 db(A)
• Sound pressure level: 80.8 dB(A)
• Vibration level: 2.45 m/s²
• Battery type: Li-ion
• Weight: 2.8 kg
• Brushless POWERSTATE™ motor for up to 3x longer motor life and up to 2x more cuts per charge.
• REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load.
• REDLITHIUM™-ION battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life.
• Individual battery cell monitoring optimises tool run time and ensures long term pack durability.
• 50° bevel capacity.
• Magnesium upper and lower guards provide best in class durability for impact resistance.
• Magnesium shoe reduces weight and maximises durability.
• Integrated dust blower keeps cut line clear.
• Hang hook allows safe storage of the tool.
• Integrated battery fuel gauge & LED light.
• Flexible battery system: works with all MILWAUKEE® M18™ batteries.
M18 FSZ
• Voltage: 18 V
• No load stroke rate: 0-3000 spm
• Max. cutting depth in aluminium/metal pipe/non-ferrous metal/soft-wood/steel: 25/150/25/300/20 mm
• Vibration cutting boards: 26.7 m/s²
• Vibration cutting boards uncertainty: 1.5 m/s²
• Vibration cutting wooden beam: 25.1 m/s²
• Vibration cutting wooden beam uncertainty: 1.5 m/s²
• Stroke length: 32 mm
• Battery type: Li-ion
• Weight with battery pack (M18 B5): 3.8 kg
• Brushless POWERSTATE™ motor for up to 5x longer motor life and up to 30% faster cutting.
• Patented gear protecting clutch - extends gear and motor life by absorbing high impact forces caused by sudden blade lock-ups.
• Wear resistant lever actuated FIXTEC™ blade clamp provides fast and easy blade changes.
• Metal reinforced battery connection provides improved durability and battery retention over life.
• Built-in LED light illuminates the work surface while cutting.
• Adjustable shoe for optimised use of saw blades.
• Integrated battery fuel gauge.
• Durable metal rafter hang hook for work space management and safety.
• The DNA of our FUEL™ platform redefines the balance of cordless technologies. MILWAUKEE®'s POWERSTATE™ brushless motor,
REDLITHIUM™ battery pack and REDLINK PLUS™ electronic intelligence delivering outstanding power, run time and durability.
• Flexible battery system: works with all MILWAUKEE® M18™ batteries.
M18 FH
• Voltage: 18 V
• Blow energy: 2.5 J
• Max. percussion rate: 0-4800 bpm
• No load speed: 0-1330 rpm
• Max. drilling wood/steel/concrete: 28/13/26 mm
• Vibration drilling: 12.9 m/s²
• Vibration chiseling: 14.2 m/s²
• Battery type: Li-ion
• Weight with battery pack (M18 HB5.5): 4.3 kg
• The fastest drilling rotary hammer in its class leading to increased productivity.
• Powerful hammer mechanism delivers 2.5 J of impact energy at low 12.9 m/s² vibrations.
• Drills up to 125 Ø10 x 50 mm holes on a M18™ HIGH OUTPUT™ 5.5 Ah battery charge.
• AUTOSTOP™ shuts down the tool to protect the user of sharp movement in bind up situations.
• All metal gear case - optimum seating of the gears for enhanced tool life.
• 4-mode operation: rotary hammer, hammer only, rotation only and selectable work position of the chisel (variolock) for maximum versatility.
• Compatible with M18 FCDDEXL or M18 FDDEXL dust extractors.
• The DNA of our FUEL™ platform redefines the balance of cordless technologies.
• MILWAUKEE®'s POWERSTATE™ brushless motor, REDLITHIUM™ battery pack and REDLINK PLUS™ electronic intelligence delivering outstanding power, run time and durability.
• The HIGH OUTPUT™ system of tools elevates the M18 FUEL™ technologies to a new level and delivers extended performance and extended run time.
• These tools are designed to maximise the partnership with HIGH OUTPUT™ batteries.

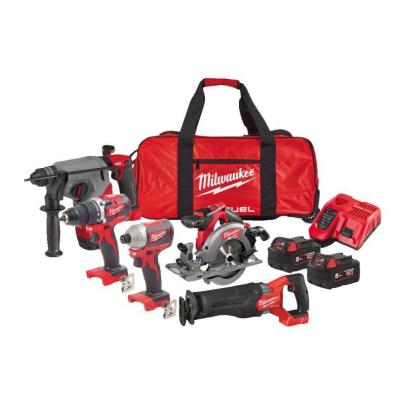

• Supplied in a bag with 2 batteries and charger.
