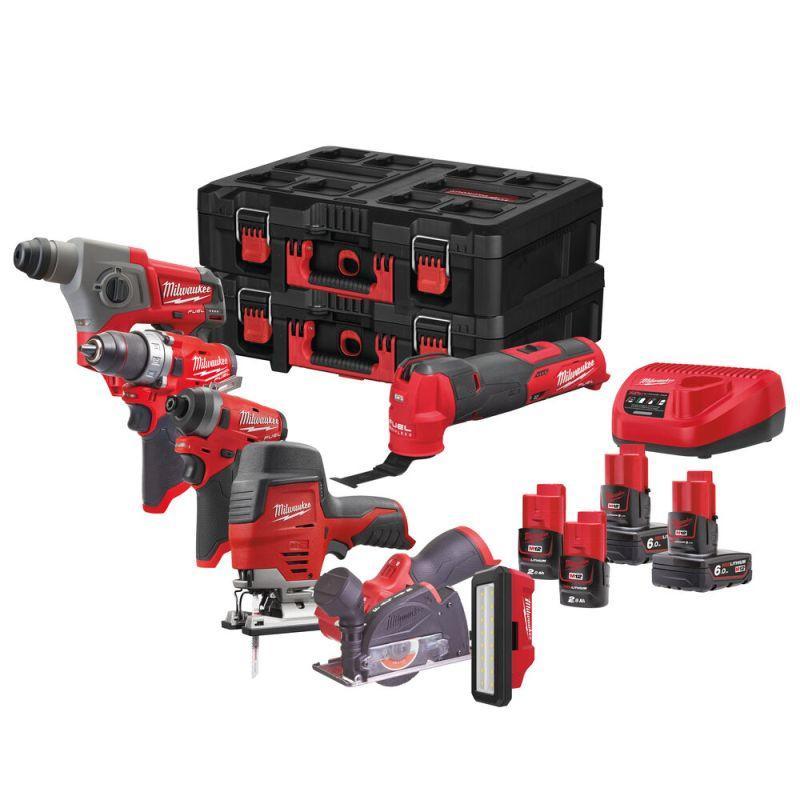

M12 FPP7A-624P - POWERPACK M12™, M12 FPD, M12 FID, M12 FCOT, M12 CH, M12 FMT, M12 JS, M12 PAL, 2 x 2.0, 2 x 6.0 Ah, 4933480555

M12 FPD
• Voltage: 12 V
• No load speed gear 1/2: 0-450/0-1700 rpm
• Max. percussion rate: 0-25500 bpm
• Max. torque: 44 Nm
• Chuck capacity: 13 mm
• Max. drilling wood/ metal/ masonry: 35/13/13 mm
• Wood screws to: 8 mm
• Battery type: Li-ion
• Weight with battery pack: 1.2/1.5 kg

• Brushless POWERSTATE™ motor delivers more power in a more compact size.
• REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load.
• REDLITHIUM™-ION battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life.
• Individual battery cell monitoring optimises tool run time and ensures long term pack durability.
• 13 mm metal chuck for quick bit changes and bit retention.
• Electronic clutch with 16 torque settings, plus 1 for locked clutch drilling and 1 for locked clutch hammer.
• Fuel gauge displays remaining charge.
• Bright LED workspace illumination.
• Flexible battery system: works with all MILWAUKEE® M12™ batteries.

M12 FID
• Voltage: 12 V
• Impact rate: 0-4000 ipm
• No load speed: 0-1300/0-2400/0-3300/0-3300 rpm
• Max. torque: 147 Nm
• Max. bolt diameter: M14
• Sound pressure level: 88.1 dB(A)
• Sound power level measured: 99.1 dB(A)
• Battery type: Li-ion
• Weight with battery pack: 1.1 kg

• Brushless POWERSTATE™ motor with faster speed in a more compact size of 130 mm.
• REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load.
• 4-Mode DRIVE CONTROL allows the user to shift to three different speed and torque settings, as well as a self-tapping mode to maximise application versatility.
• REDLITHIUM™-ION battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life.
• Individual battery cell monitoring optimises tool run time and ensures long term pack durability.
• 1/4" Hex chuck for quick and easy bit change.
• On board fuel gauge and LED light.
• Flexible battery system: works with all MILWAUKEE® M12™ batteries.

M12 FCOT
• Voltage: 12 V
• Disc diameter: 76 mm
• Bore size: 10 mm
• Max. cutting depth: 16.3 mm
• No load speed: 20000 rpm
• Anti-kickback protection: no
• Battery type: Li-ion
• Weight with battery pack: 1.1 kg

• Fast accurate cutting with up to 20000 RPM.
• Optimised ergonomic design for best control and one-handed use.
• Only 1.1 kg and 226 mm in length.
• Multi-material cutting capability with variety of blades available (metal cut-off wheel, carbide abrasive blade and diamond tile blade).
• A very capable problem solving tool for cutting steel, stainless steel, non-ferrous materials, drywall, fibre cement, plastic and ceramics.
• Easily adjustable guard and unique forward/reverse selectable blade rotation direction to protect user from debris in various cutting positions.
• Quick release dust shoe with depth adjustment and optional dust extraction port.
• Brushless POWERSTATE™ motor delivers more power in a more compact size.
• REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load.
• REDLITHIUM™-ION battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life.
• Individual battery cell monitoring optimises tool run time and ensures long term pack durability.
• 76 mm blade offers up to 16.3 mm depth of cut.
• Fuel gauge displays remaining charge.
• Brightest LED workspace illumination.
• Flexible battery system: works with all MILWAUKEE® M12™ batteries.

M12 CH
• Voltage: 12 V
• Blow energy: 1.1 J
• Full load hammer action: 0-6575 bpm
• No load speed: 0-900 rpm
• Max. drilling wood/steel/concrete: 13/10/13 mm
• Optimised drilling capacity in concrete: Ø 5.5 - 12 mm
• Battery type: Li-ion
• Weight with battery pack (M12 B2): 1.7 kg

• Industry's first brushless compact 12V rotary hammer with 1.1 Joules (EPTA), 0 - 6575 bpm & 0 - 900 rpm.
• Exceptionally low vibration value 4.4 m/s² can be used for 8 hours in a day.
• Will drill over 60 50 mm x 6 mm holes per battery charge.
• Superior power to weight ratio in its class with brushless POWERSTATE™ motor for up to 3x longer motor life and up to 2x more run time.
• REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load.
• REDLITHIUM™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life.
• 2-mode operation: choose rotary hammer or rotation only for maximum versatility.
• Optimised hammer drilling up to 6 - 10 mm (max 13 mm).
• 43 mm neck size - compatible with M12 DE dust extractor.
• Flexible battery system: works with all MILWAUKEE® M12™ batteries.

M12 FMT
• Voltage: 12 V
• No load speed: 10000 - 20000 rpm
• Oscillation angle left/right: 1.8°
• Vibration cutting wood: 10.01 m/s²
• Vibration cutting wood uncertainty: 1.5 m/s²
• Battery type: Li-ion
• Weight with battery pack: 1.6 kg

• Brushless POWERSTATE™ motor delivers fast cutting speed through common materials without slowing or bogging down in hardwoods.
• Adjustable 10,000 to 20,000 opm allow the user to get the perfect cut whatever the material.
• Lowest vibration in its class, 4.56 m/s² driving productivity through performance and safety.
• 1.8° left/right oscillation angle allowing faster cuts.
• Ability to make up to 59 cuts in oak on one 2.0 Ah battery charge.
• REDLINK PLUS™ intelligence system delivers an advanced digital overload protection for tool and battery and uniquely enhances the tool performance under load.
• FIXTEC™ tool free blade change with universal blade change adaptor included to accept all major competitor blades.
• LED work light illuminates the cut line in low light conditions.
• Supplied with an adapter, plunge cut blade OSC 112, sanding backing pad, 5 x sanding sheets and a DEK26 dust guard to use when sanding.
• REDLITHIUM™ battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life.
• Flexible battery system: works with all MILWAUKEE® M12™ batteries.

M12 JS
• Voltage: 12 V
• Stroke length: 19 mm
• No load stroke rate: 0 - 2800 spm
• Max. cutting capacity wood/aluminium: 40/15 mm
• Vibration cutting wood/metal: 10.1/7.8 m/s²
• Bevel capacity: 45°
• Battery type: Li-ion
• Weight: 1.8 kg
• Weight with battery pack: 2.1 kg

• Sound power and pressure level: 88.5 / 77.5 dB(A)
• New grip design combines the best features from both top handle and barrel grip jigsaw design.
• REDLINK™ overload protection electronics in tool and battery pack deliver best in class system durability.
• Variable speed - electronic trigger provides user flexibility and control.
• Smooth cut - minimal vibration during cutting provides ultra smooth performance.
• Precision roller guide increases user control and reduces blade deviation.
• Line of sight - the compact tool design improves cut line visibility.
• Tool free bevel facility - quick and easy bevel adjustment up to 45°.
• QUIK-LOK™ T-Shank blade clamp.
• Individual battery cell monitoring optimises tool run time and ensures long term pack durability.
• On board fuel gauge and LED light.
• REDLITHIUM™-ION battery pack provides superior pack construction, electronics and fade-free performance to deliver more run time and more work over pack life.
• Flexible battery system: works with all MILWAUKEE® M12™ batteries.

M12 PAL
• Voltage: 12 V
• Max. lumens: 250/700
• Max. run time with M12 B4 battery: 24/8 h
• IP protection class: IP54
• Bulb type: LED
• Battery type: Li-ion
• Weight with battery pack (M12 B4): 0.9 kg

• TRUEVIEW™ high definition lighting with up to 700 lumens.
• Up to 24 hours of run time on M12™ 4.0 Ah battery pack.
• With powerful magnets as well as a rotating light head design with 110° rotation in each direction to provide multiple beam options.
• Highly durable and impact resistant design to withstand drops up to 3 m.
• Most compact M12™ flood light designed for the on-the-go needs of service and maintenance trades.
• 2.1 AMP USB output for USB device charging.
• IP54 rating, the light is protected from dust and splashing water.
• Low battery indicator, light flashes when battery pack is low on charge.
• Flexible battery system: works with all MILWAUKEE® M12™ batteries.

• Supplied in 2 cases (PACKOUT) with 4 batteries and charger.
