M12 3PL • Voltage: 12 V • Working range visible: 38 m • Working range detector: 50 m • Accuracy: 0.3 mm/m • Self-levelling range: +/- 4° • Drop resistance: 1 m • Laser classification: Class 2 • Colour of laser line: green • Max. run time with M12 B4 battery: 15 h
• M12™ green 360° 3 plane laser provides an all-in-one functionality with one horizontal line and two vertical lines for fast and easy alignment, leveling, squaring, and transfers allowing you to easily layout large spaces with one tool. • Built with high intensity green diodes to provide maximised visibility - up to 4x better visibility vs red lasers. • High intensity green beams provide a working range of 38 m and up to 100 m with a detector. • Provides all-day run time of 15+ hours with an M12 B4 battery pack. • 3 mode pendulum system: Manual Mode for use at any angle, Self-Levelling Mode that indicates out-of-level condition with a 4° self-levelling range and Pendulum Lock Mode to protect components during transport. • Integrated magnetic bracket with rear mounted amplified rare earth magnets, 1/4" and 5/8" tripod thread and hang hole - allows attachment to steel stud, wooden stud and tripod. • The bracket also provides the laser 330° rotation that pivots on plumb point, with an integrated micro control knob for faster point to point alignment. • Robust over-moulded construction with an IP 54 rating, the laser is water/ debris resistant and can withstand up to 1 m drops. • Flexible battery system: works with all MILWAUKEE® M12™ batteries.
HI-VIST • The MILWAUKEE® high visibility laser target plate provides fast and visible alignment with a wide magnetic base for floors & ferrous surfaces. • High contrast reflective surface for use with green lasers. • The X design provides responsive centering feedback that guides the line to the centre, making the alignment process faster.
LLD50 • Range: 50 m • Accuracy: +/- 0,75 / +/- 1 mm • Weight with battery pack: 0,23 kg
• The MILWAUKEE® LLD50 laser line detector extends laser line functionality up to 50 metres. • The LEDs on front and back allow easy and accurate detection of the laser beam to improve the set-up process. • Rare earth magnets located on two sides of the detector allow it to easily attach to metal surfaces, ideal for suspended ceiling installations. • The included clamp is ideal for attaching to non-metal surfaces for setting elevations. • The detector has adjustable audio feedback and has over 65 hours of run time with included AA batteries. • Compatible with all MILWAUKEE™ line & plane lasers. • Adjustable accuracy settings for greater precision. • IP54 protects detector from jobsite conditions. • 1 m impact resistance.
LM360 • The MILWAUKEE® 360° laser mount is an adaptable laser attachment that provides the fastest laser setup. • Multi-plane rotational adjustment, users can easily attach all MILWAUKEE® lasers to the mount. • A micro vertical adjustment that makes aligning horizontal lines much faster. • The amplified rare earth magnets on both sides provide a strong hold even on thin steel stud material. • Integrated screw and nail hang holes make setup easy and efficient in any environment. • Integrated 1/4" & 5/8" thread to easily attach to most tripods.
TRP120 • The MILWAUKEE® compact laser tripod with a 1/4" mounting thread and a flat head design is ideal for setting the height of a horizontal laser line or elevating the laser when needed. • Height can be adjusted easily from 47 cm to 120 cm. • 29 cm elevating range for fine adjusting the height. • Laser can be mounted to the bottom of the tripod with the LM360 bracket (not included) for low level applications like socket installation. • Durable and light weight aluminium frame for a longer life.

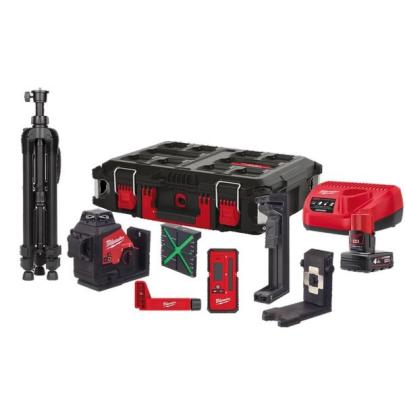

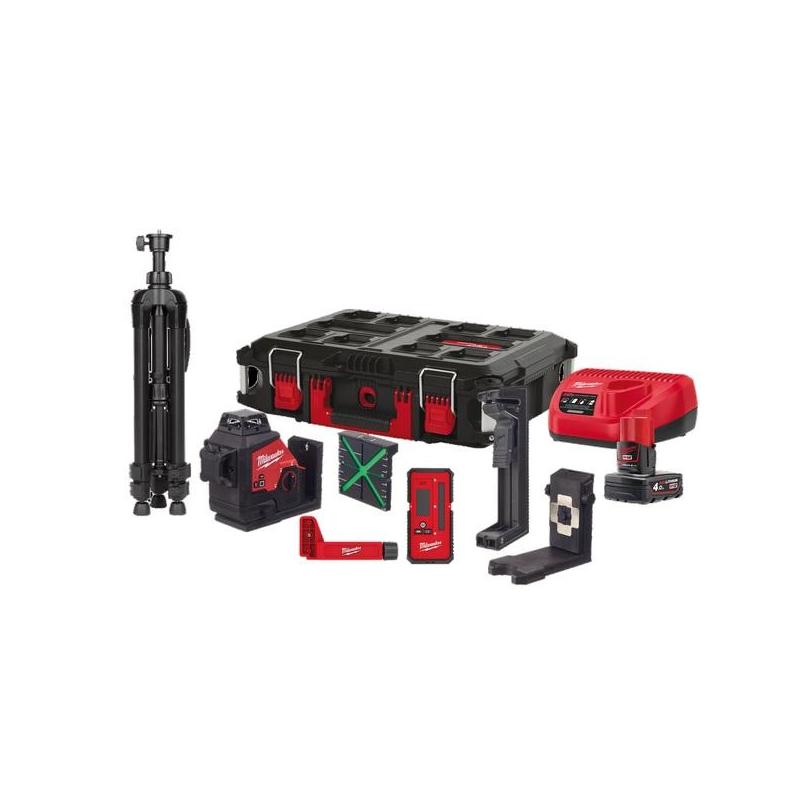

• Supplied in case (PACKOUT) with battery and charger.
Symbol:
M123PLKIT-401P
Nazwa:
laser 3-płaszczyznowy 360°, detektor, statyw, 12 V
Stopień ochrony IP:
IP 54
Typ akumulatora:
Li-Ion
Check product video
• Voltage: 12 V • System: M12 • Up to 20% more power, 2x more run time • Overload protection • Battery type: Li-ion • No. of batteries supplied: 1 • Battery pack capacity: 4.0 Ah • Weight: 0.4 kg
• The MILWAUKEE® 360° laser mount is an adaptable laser attachment that provides the fastest laser setup. • Multi-plane rotational adjustment, users can easily attach all MILWAUKEE® lasers to the mount. • A micro vertical adjustment that makes aligning horizontal lines much faster.
• The MILWAUKEE® high visibility laser target plate provides fast and visible alignment with a wide magnetic base for floors & ferrous surfaces. • High contrast reflective surface for use with green lasers. • The X design provides responsive centering feedback that guides the line to the centre, making the alignment process faster.
• The MILWAUKEE® compact laser tripod with a 1/4" mounting thread and a flat head design is ideal for setting the height of a horizontal laser line or elevating the laser when needed. • Height can be adjusted easily from 47 cm to 120 cm.
